Rev9 Hyper Street II Coilover Shock for RWD Sedan W212 E300 E350 E500 E550 10-16

Brand New Rev9 Hyper Street II Coilover Shock for RWD Sedan W212 E300 E350 E500 E550 10-16
Manufacturer Part Number: R9-HS2-175

New in box: Coilover Lowering Kit (Not allow set factory height)

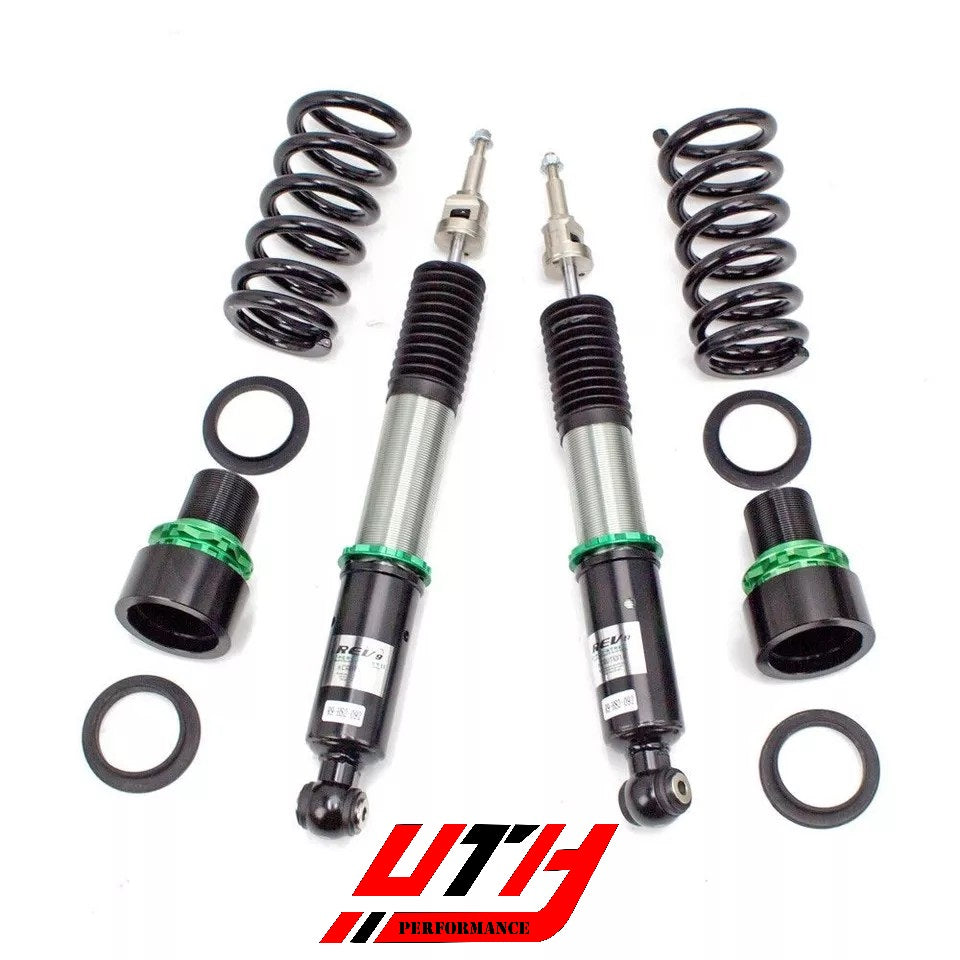

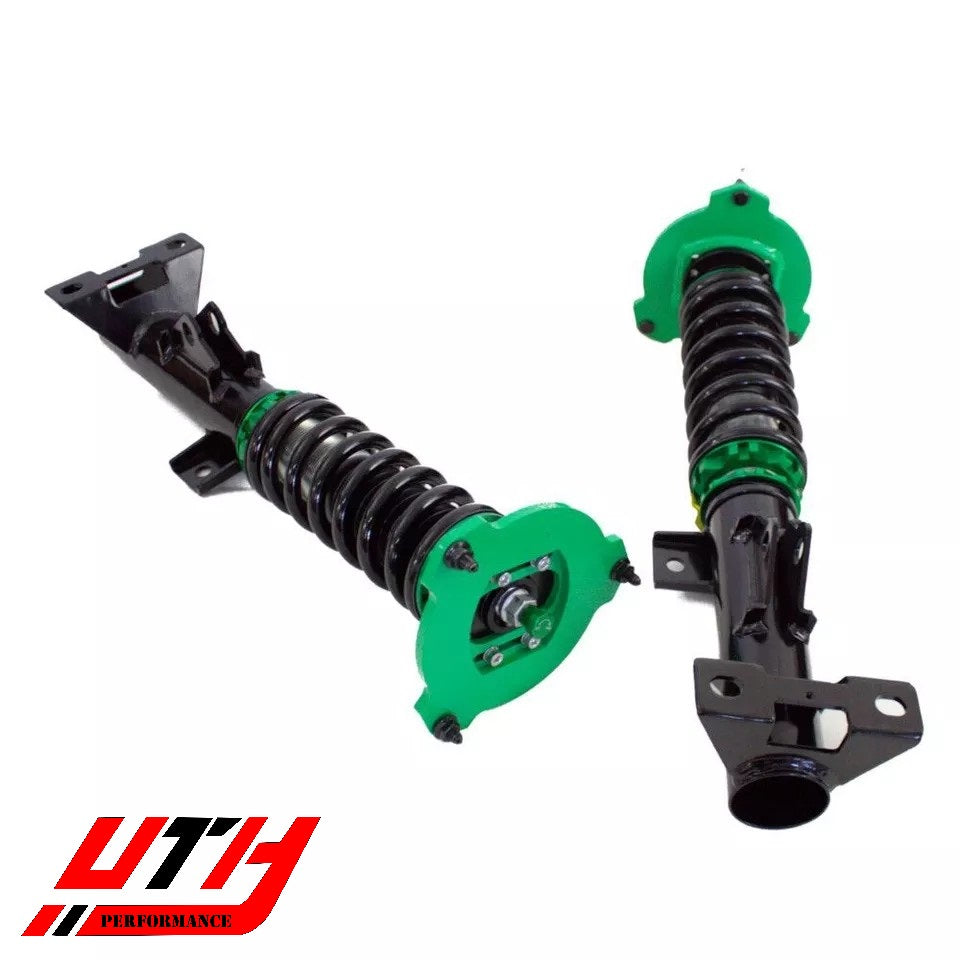

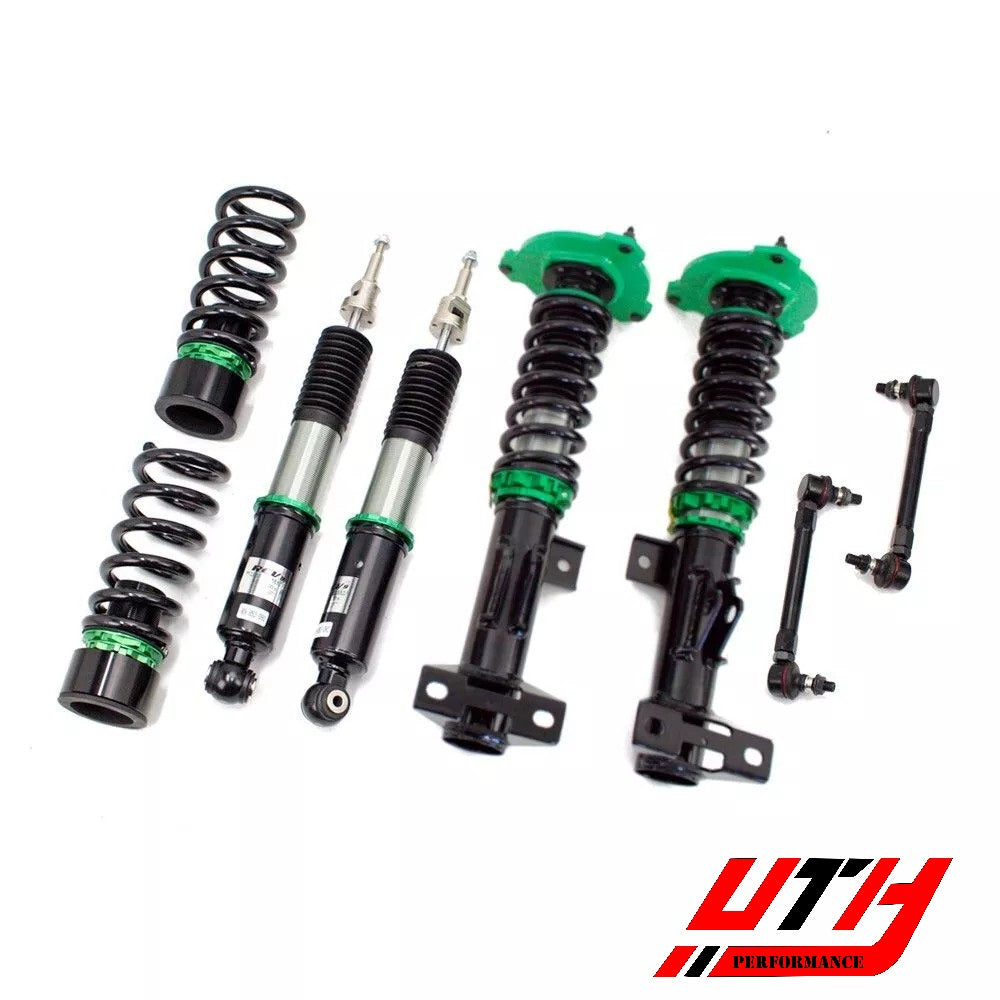

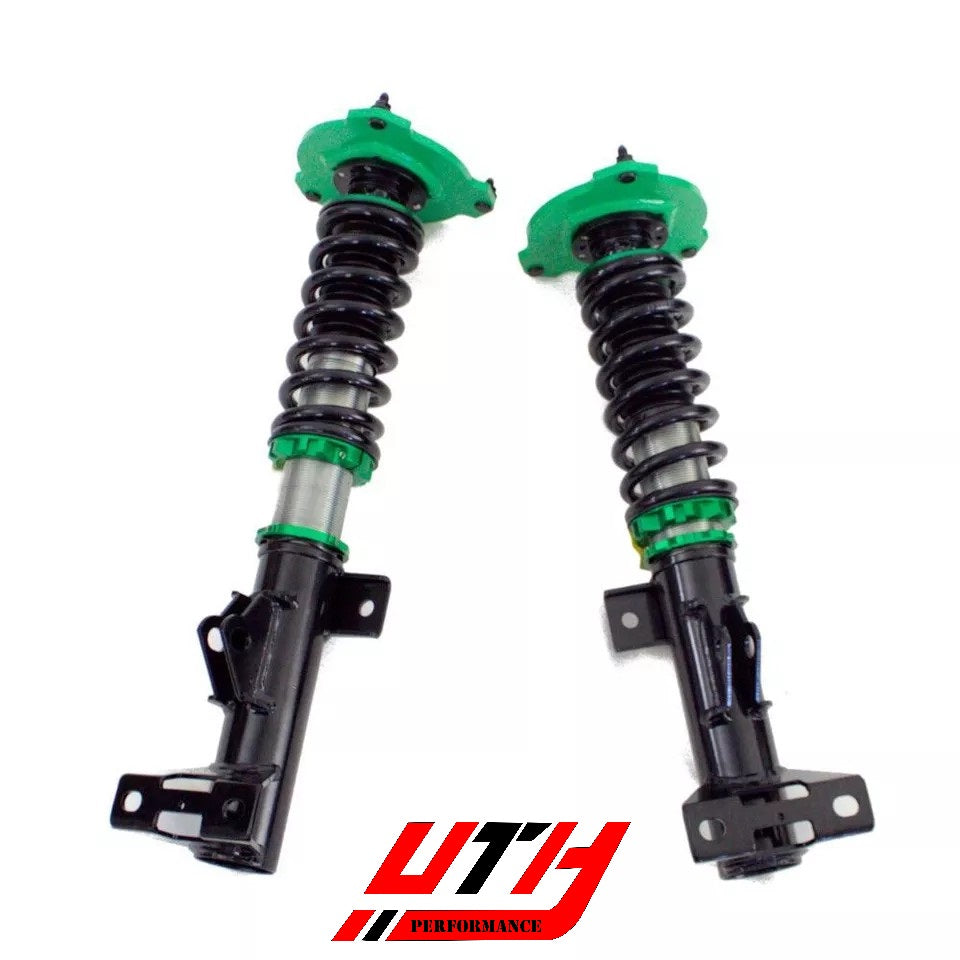

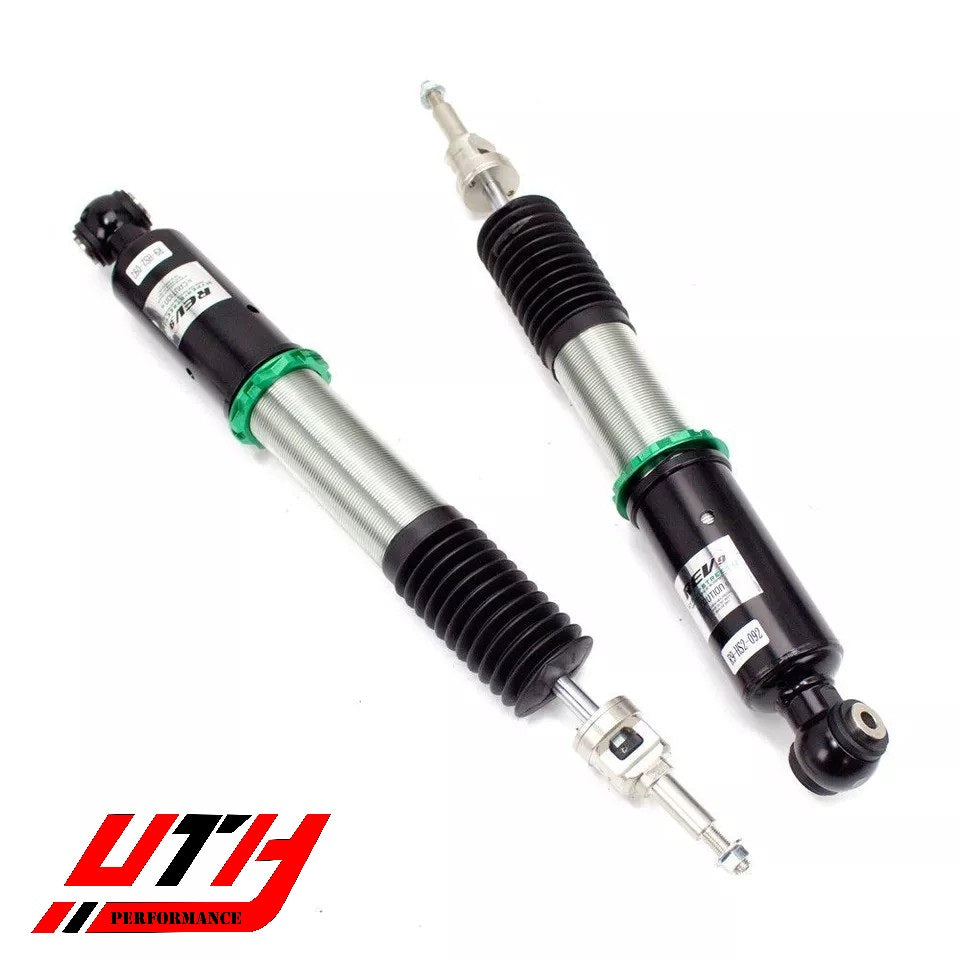

Rev9 Hyper Street II Coilover
Application:
Mercedes-Benz E-Class W212 *RWD Sedan 10-16

Note: Will not fit Coupe/Wagon
Note: Will not fit 4matic
Note: For Air convert to Coil  - Reprogramming ECU required to turn off service light

Hyper-Street II coilover suspension upgrade features mono-tube shocks with 32 clicks rebound settings and full length adjustable. Mono-tube shocks provides larger capacity for gas and oil to improve comfortable level of typical lowering vehicle. Special 32 clicks of valving allows user to fine tune rebound force settings. Independent spring tension and full length adjustable allows drop without sacrifice comfort by shorten pitch distance.

Full Steel Alloy Constructions With Aluminum Hardware
Mono-Tube Shocks Provide  Larger Capacity of Oil And Gas
32 Clicks of Rebound Force Adjustment
Full Length Adjustment - Lowers The Car Without Ruining Spring Tension
Independent Spring Tension - Custom Stiffness Without Change Ride Height

Damping Levels    32 Levels
Height Adjustment    Yes
Spring Rate(Front)    7 kg/mm (392 lbs/inch)
Spring Rate(Rear)    11 kg/mm (616 lbs/inch)
Spring Length(Front)    180 mm
Spring Length(Rear)    210 mm
Front Top Mount    Yes, Pillow Ball Camber Plate
Rear Top Mount    No, Reuse Factory
Spring Inner Diameter(Front)    62 mm (2.44 inch)
Spring Inner Diameter(Rear)    62 mm (2.44 inch)
